GTS-7500(Mass production model of burner)

Product classification:Mass production model of burner

Updated:2017-05-10

立即咨询 Service hotline:0512-67950666

Mass production model of burner

Position:Home>Burner> Mass production model of burner

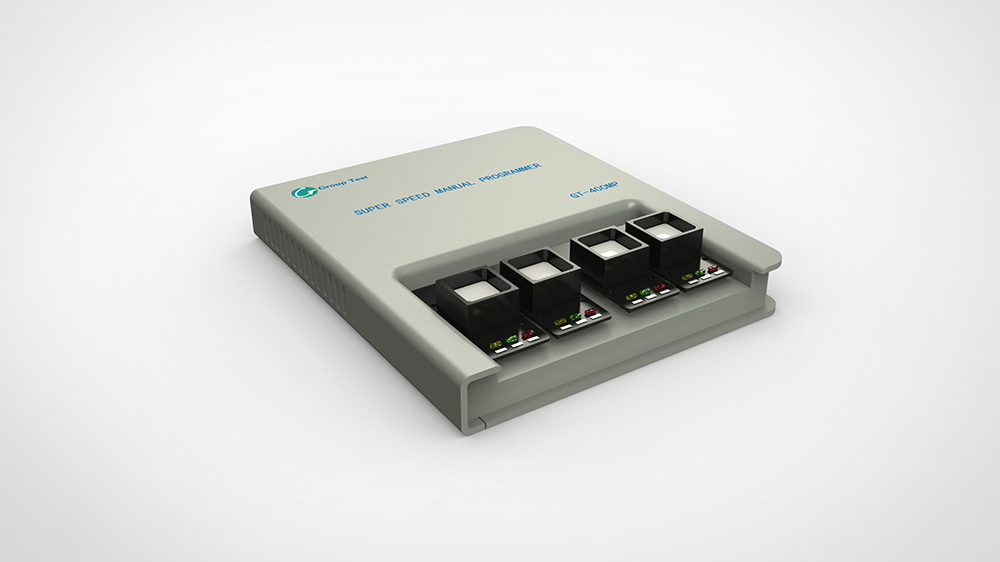

GTS-7500(Mass production model of burner)

Click:544Time:2017.05.10source: www.ic-test.cn

英文的产品简介


  ◆   A new generation of high-speed core, with USB3.0 transmission interface,

      Burning speed increased significantly


  ◆   Supports up to 4 burners


  ◆   IC supports various types of universal-type burner


  ◆   Full-pin automatic detection, to prevent IC reverse burn, poor contact and other issues


  ◆   4 sets of indepe++=ndent pin drive circuit, multiple IC parallel to each other does not interfere with each other to provide high-speed, high-quality programming


英文的功能特色

  ◆   New generation of high-speed core:

      GT-400MP for EMMC, NAND and other large-capacity IC burning speed faster than other models 3 times


  ◆   Supports a wide variety of ICs

      Support covers MCU / MPU, EEPROM, EMMC, EMCP, SPI Memory, NOR: NAND Flash, FPGA, CPLD ... and other types of IC


  ◆   Supports a variety of IC package burner

       High-quality production of the burner adapter board, a substantial extension of the life of the burner

       Supports up to 4 burners

       Up to 4 cassettes are installed


  ◆   Complete and clear software interface

       Highly graphical user interface

       The burning process clearly show

       With a written prompt for each burner status


英文的产品规格(短)

Supports IC types

MCU / MPU, EEPROM, EMMC, EMCP, SPI memory, NOR / NAND FLash, FPGA, CPLD ... and so on

Support Package Types

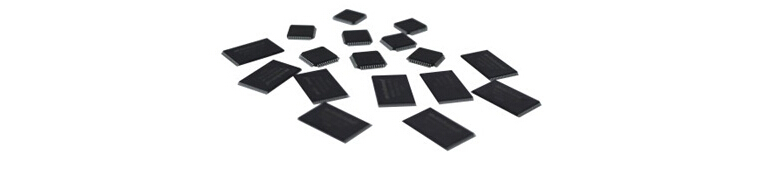

SOP,TSOP,QFP,BGA,QFN,SON,WLCSP... and so on

Support IC pin count

8 pins~300 pins

Burning seat

4 burner adapter board, can support up to 4 burner

Burning capabilities

LoadFile,Read Master,Program,Verify,Auto,ID Check,Checksum,Blank Check,Erase,Secure,Protect/Unprotect,Edit,Function Configuration,Self Test...

Transmission interface

USB 3.0 Super Speed/USB 2.0 High Speed

Operating system environment

Windows XP,7,8.1,10

power supply

AC 100-240V/50-60Hz

Power consumption

150W

Operating temperature

0-40°C(32~105°F)

physical dimension w×D×H

178mm×209mm×25mm

weight

1.05KG
